ubuntu gns3 connect with vbox

Sometimes some experiments of cisco, such as snmp and tftp, need to be combined with the operating system. So, it took me a lot of time to set up this experimental environment.

The system I use is ubuntu, and two necessary components need to be installed:
apt-get install bridge-utils
apt-get install uml-utilities

brctl addbr br0 build a bridge
ip ls dev br0 up open
ip a

tunctl -t tap0 -u yeelone creates a virtual network card
ip l s dev tap0 up
ip a

Connect tap0 to eth0
brctl addif br0 tap0
brctl addif br0 eth0

brctl show br0

ip a a 192.168.1.1/24 dev br0
ip r a default via 192.168.1.100

dhcpcd br0

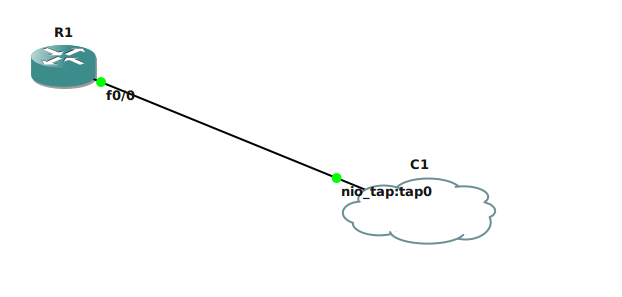

then:
