Ubuntu 18.04 uses elastic network card to configure multiple external network IP

After purchasing a server, there is only one public network IP by default. It is often encountered that a single external network IP cannot meet business needs. This article will introduce how a server can configure multiple IPs through a single network card or multiple network cards.

One, single network card configuration multiple IP

1、 lab environment##

2、 Console assign IP

2.1 Assign intranet IP

2.2 Assign public IP

3、 Modify server network card configuration##

3.1 View network card information

3.2 Modify the network card configuration

• Ubuntu 18.04 uses netplan as network configuration management, which is very different from 16.04 and previous versions.
• Configuration file: /etc/netplan/50-cloud-init.yaml
• Command to take effect after modifying the configuration: sudo netplan apply

ubuntu@VM-255-100-ubuntu:~$ sudo  vim /etc/netplan/50-cloud-init.yaml
ubuntu@VM-255-100-ubuntu:~$ cat /etc/netplan/50-cloud-init.yaml
# This file is generated from information provided by
# the datasource.  Changes to it will not persist across an instance.
# To disable cloud-init's network configuration capabilities, write a file
# /etc/cloud/cloud.cfg.d/99-disable-network-config.cfg with the following:
# network:{config: disabled}
network:
 version:2
 ethernets:
  eth0:
   addresses:-10.1.255.100/24-10.1.255.101/24-10.1.255.102/24
   ### The main modification is the addresses part.
   match:
    macaddress:52:54:00:fa:d3:fc
   nameservers:
    addresses:-183.60.83.19-183.60.82.98
   routes:-   to:0.0.0.0/0
    via:10.1.255.1set-name: eth0
ubuntu@VM-255-100-ubuntu:~$
ubuntu@VM-255-100-ubuntu:~$ sudo  netplan apply
ubuntu@VM-255-100-ubuntu:~$

3.3 Check the network card information again

4、 Test Results##

All three external network IPs can be pinged and ssh can be used to log in. The single network card configuration has been completed.

Two, multiple network card configuration multiple IP

The above one network card can be configured with multiple IPs, why use multiple network cards?

For example, one person can put 5 cows, then 2 people can put 10 cows, and three people can put 15 cows............

1、 lab environment##

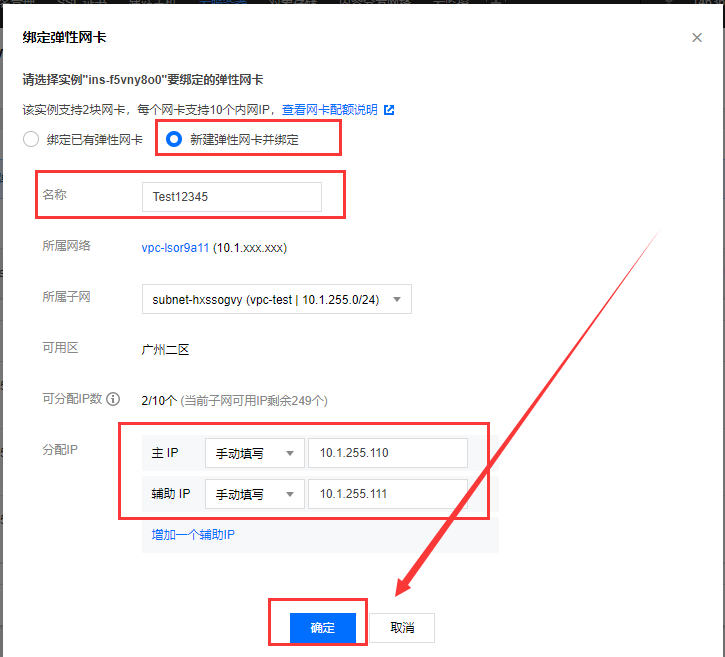

2、 Create a new elastic network card (auxiliary network card)

PS: The console prompts friendly here, reminding us to modify the IP and routing in the server, otherwise communication will not be possible, click OK to start creating.

3、 Auxiliary network card binding external network IP

4、 Modify server configuration##

4.1 View network card information

Here the auxiliary network card (eth1) device has been displayed, but there is no IP information to see, so it cannot communicate.

4.2 Modify the network card configuration

ubuntu@VM-255-100-ubuntu:~$ sudo vim /etc/netplan/50-cloud-init.yaml
ubuntu@VM-255-100-ubuntu:~$ cat /etc/netplan/50-cloud-init.yaml
# This file is generated from information provided by
# the datasource.  Changes to it will not persist across an instance.
# To disable cloud-init's network configuration capabilities, write a file
# /etc/cloud/cloud.cfg.d/99-disable-network-config.cfg with the following:
# network:{config: disabled}
network:
 version:2
 ethernets:
  eth0:
   addresses:-10.1.255.100/24-10.1.255.101/24-10.1.255.102/24
   match:
    macaddress:52:54:00:fa:d3:fc
   nameservers:
    addresses:-183.60.83.19-183.60.82.98
   routes:-   to:0.0.0.0/0
    via:10.1.255.1set-name: eth0

### The auxiliary network card is configured as eth1, which is a newly added configuration.
  eth1:
   addresses:-10.1.255.110/24-10.1.255.111/24
   match:
    macaddress:20:90:6F:4D:50:47
### The MAC address of the network card. This parameter is not required. To view the MAC address, please refer to the official website document(https://cloud.tencent.com/document/product/576/18533)
   nameservers:
    addresses:-183.60.83.19-183.60.82.98
   routes:-   to:0.0.0.0/0
    via:10.1.255.1set-name: eth1
ubuntu@VM-255-100-ubuntu:~$
ubuntu@VM-255-100-ubuntu:~$ sudo  netplan apply
ubuntu@VM-255-100-ubuntu:~$

4.3 Check the network card information again

4.4 Turn off rp_filter verification

ubuntu@VM-255-100-ubuntu:~$ sudo vim /etc/sysctl.conf
ubuntu@VM-255-100-ubuntu:~$
ubuntu@VM-255-100-ubuntu:~$ tail -4/etc/sysctl.conf
net.ipv4.conf.default.rp_filter =0
net.ipv4.conf.all.rp_filter =0
net.ipv4.conf.eth0.rp_filter =0
net.ipv4.conf.eth1.rp_filter =0
### Add these four lines of configuration at the end of this file, comment net.ipv4.conf.default.rp_filter =1。

ubuntu@VM-255-100-ubuntu:~$
ubuntu@VM-255-100-ubuntu:~$ sudo sysctl -p  ###Take effect after executing this command
kernel.sysrq =1
net.ipv6.conf.all.disable_ipv6 =1
net.ipv6.conf.default.disable_ipv6 =1
kernel.printk =5
net.ipv4.conf.default.rp_filter =0
net.ipv4.conf.all.rp_filter =0
net.ipv4.conf.eth0.rp_filter =0
net.ipv4.conf.eth1.rp_filter =0

5、 Test Results##

The two external IPs of the auxiliary network card can also be connected by ping and ssh, and the configuration of multiple network cards has been completed.

Three, supplement#

1、 The server must be a private network, and the basic network cannot use an elastic network card.

2、 Depending on the CPU and memory configuration, the number of flexible network cards that can be bound to [Cloud Server] (https://cloud.tencent.com/product/cvm?from=10680) and the number of internal network IPs bound to a single network card are quite different. Please refer to Official Website Instructions.

3、 Please refer to Official Website Document for related operations of the elastic network card
