Pycharm uses embedded Python
Install burning tool
adafruit-ampy installation
Ampy is a simple command line tool used to connect and manipulate files through a serial port and run code on CircuitPython or MicroPython boards. Using ampy, you can send files from the computer to the file system of the circuit board, download files from the circuit board to the computer, and even send Python scripts to the circuit board for execution.
Search for this plugin, install
Install it
Tool is displayed in gray here
https://plugins.jetbrains.com/plugin/9777-micropython
Create main.py to prompt installation library
Install this package
Run code on MicroPython device###
- Flash the Python file or project directory to the device

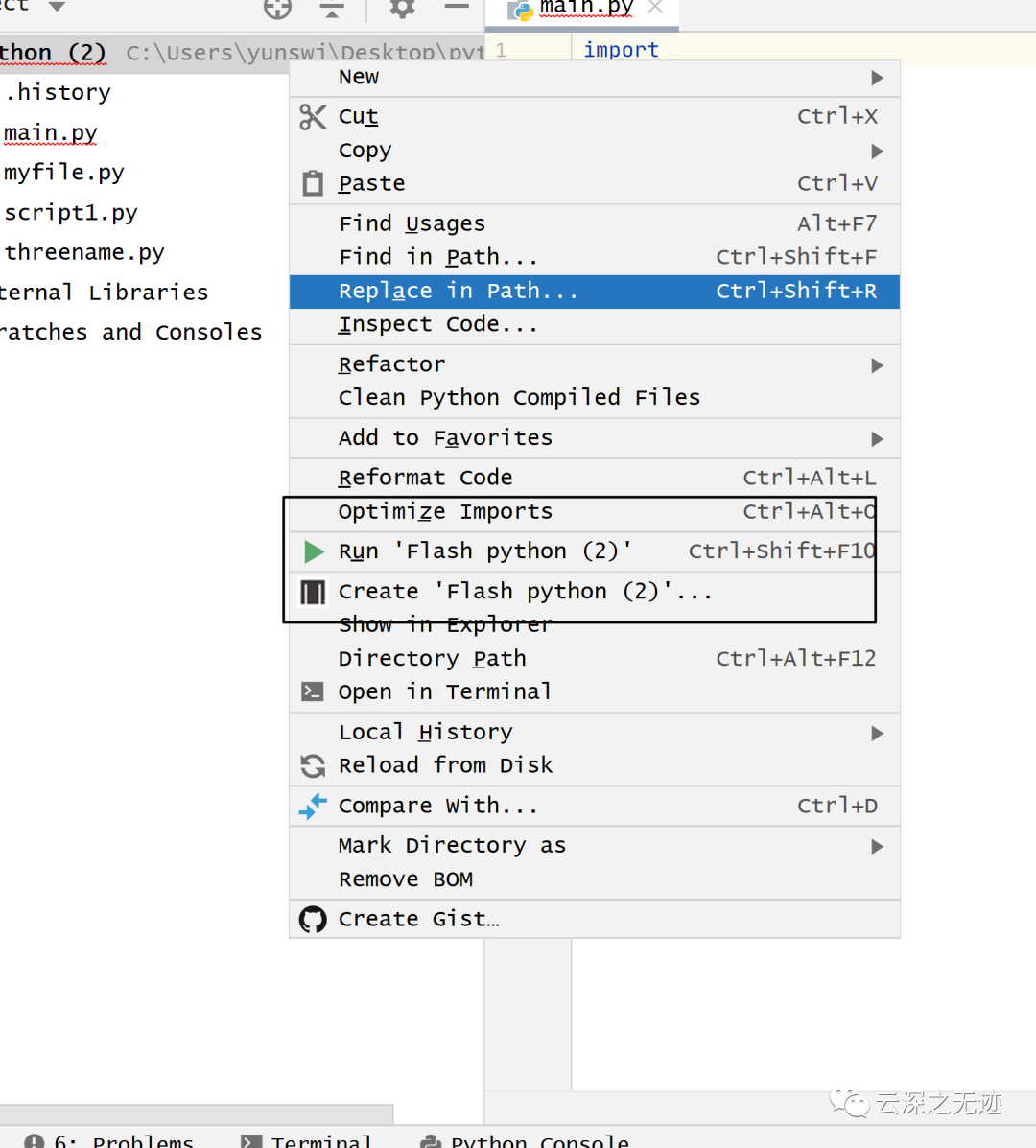

- Right-click the file or directory and select "Run'Flash'" to refresh the item to the connected device. If you want to refresh a subdirectory to the root directory of the device, mark the subdirectory as the source root directory: right-click it, and select "Mark directory as|Source root". Its icon will turn blue, please see the screenshot.
Right click in the main directory
Then you can see this on the upper right
There are upload tips below
You can see that the updates are frequent
Set it in this setting
Select on demand
Write COM4
Set it up
See configuration results
The baud rate should be wrong
You can install the driver
https://www.silabs.com/products/development-tools/software/usb-to-uart-bridge-vcp-drivers
success
Download SDK
GitHub clone sdk
https://github.com/espressif/esp-idf/releases

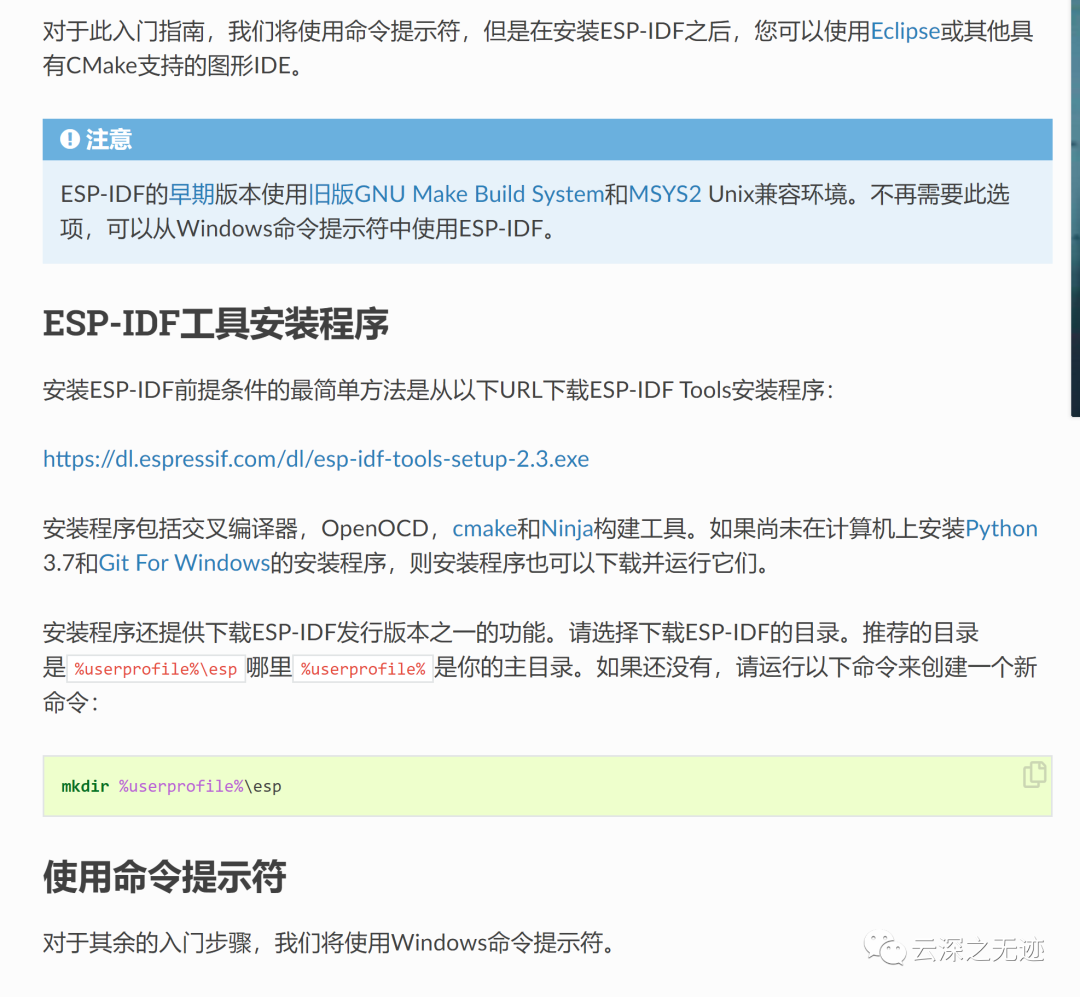

https://docs.espressif.com/projects/esp-idf/en/latest/esp32/get-started/windows-setup.html

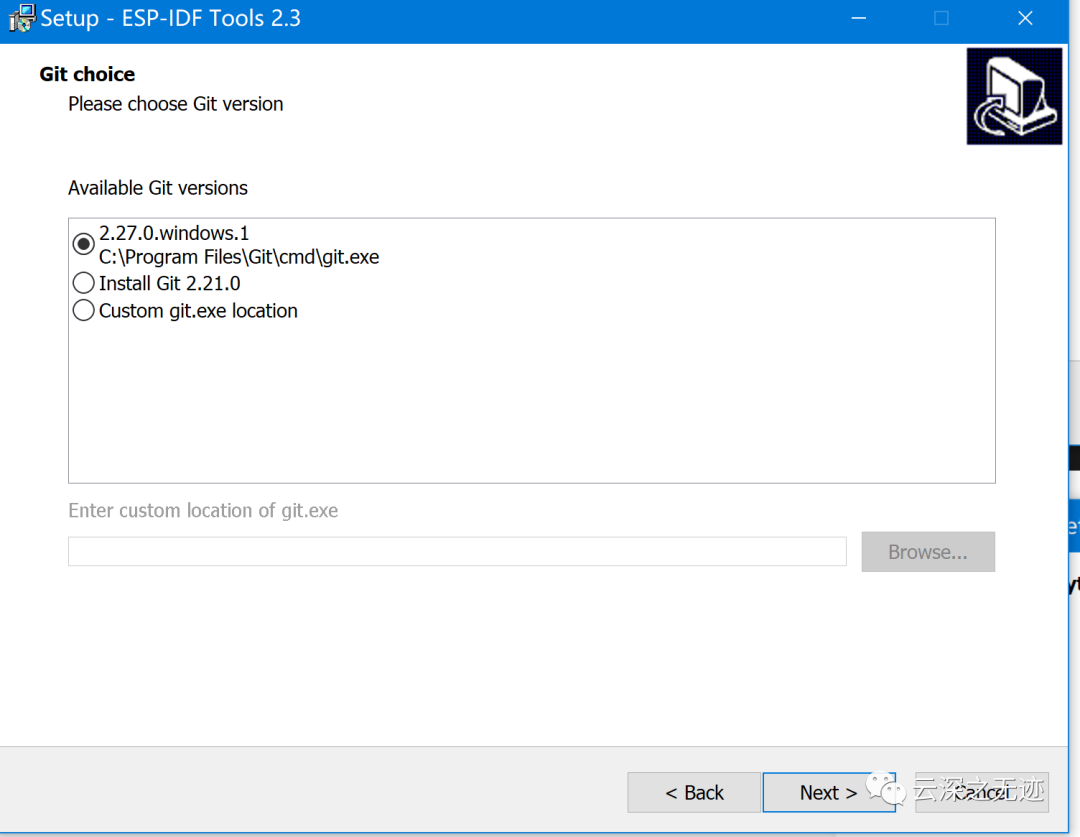

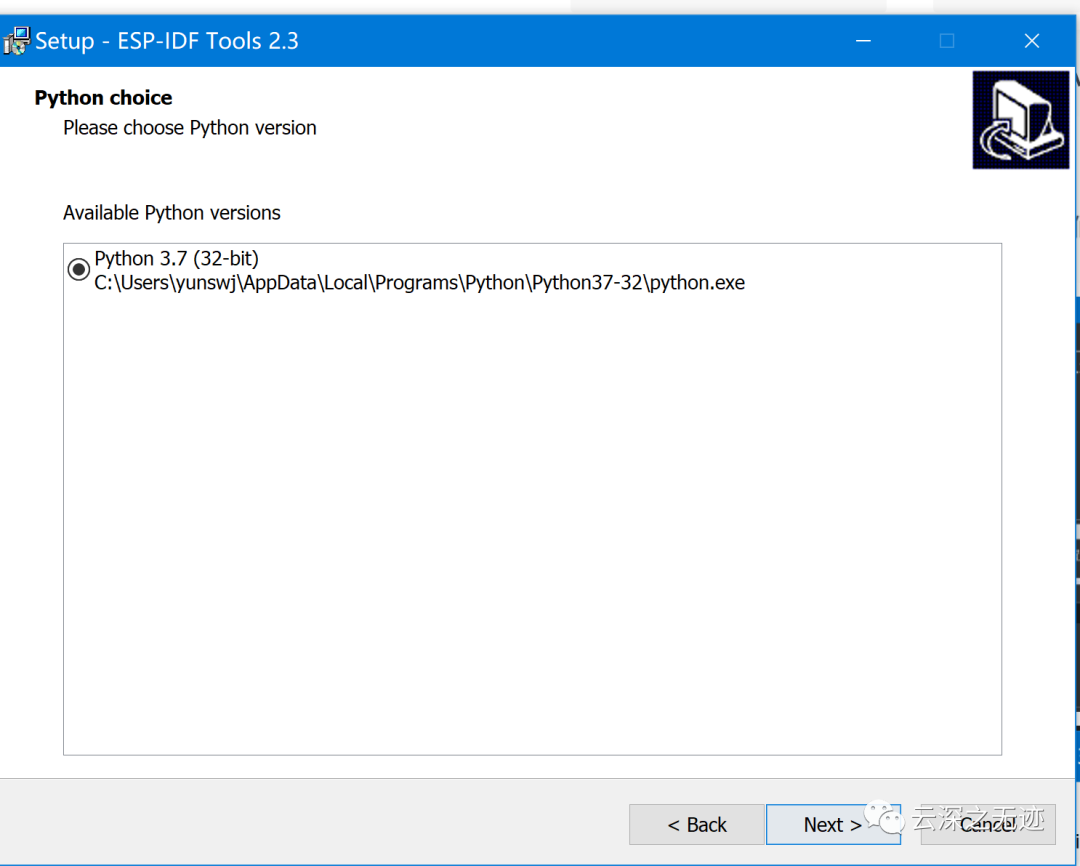

Install the integrated toolkit
Visible to the naked eye in the download file
carry out
a bit large
Continue tomorrow
