OpenCV Python implements puzzle games

Based on OpenCV to realize the puzzle version of the mini game, for your reference, the specific content is as follows

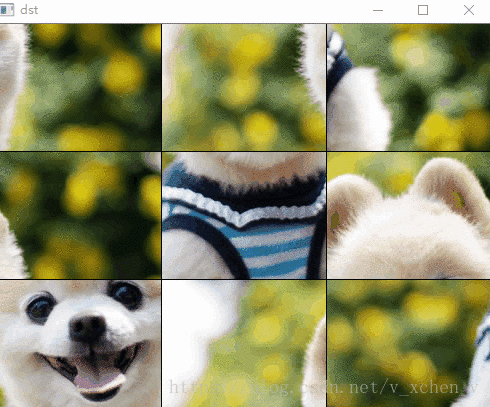

Show results

achieve

Ideas

1. Segment the image into m*n sub-images
2. Shuffle the order of subgraphs
3. Reorganize the sub-picture into a new picture and display it
4. Add mouse click response action, swap the position of the two pictures that the mouse clicks in turn
5. After each exchange, judge whether it is consistent with the original picture

python code

import cv2 as cv
import numpy
import random
import math

src = cv.imread("D:\CvPic\1.jpg")print(src.shape)
h = src.shape[0]
w = src.shape[1]
c = src.shape[2]

row =3
col =3

offset_h = h/row
offset_w = w/col

firstClick = False
clickIdx =[0,0]

tileList =[]
def calPicIdx(x, y):print(str(y)+" "+str(h/col))
 i = y//(offset_h)print(str(y%offset_h)+" "+str(offset_w))
 j = math.ceil((x%w)/offset_w)
 idx = i*row+j
 print("i:"+str(i)+" j:"+str(j)+" idx:"+str(idx))returnint(idx)

def onMouse(event, x, y, flag ,params):if event==cv.EVENT_LBUTTONDOWN:print("left button down:"+str(x)+" "+str(y))
 idx =calPicIdx(x, y)
 global firstClick
 firstClick = not firstClick
 print(firstClick)if firstClick:
 clickIdx[0]= idx
 else:
 clickIdx[1]= idx
 tileList[clickIdx[0]], tileList[clickIdx[1]]= tileList[clickIdx[1]], tileList[clickIdx[0]]for i inrange(0, row):for j inrange(0, col):
  dst[i*offset_h:(i+1)*offset_h-1, j*offset_w:(j+1)*offset_w-1]= tileList[i*row+j]
 cv.imshow("dst", dst)

 difference = cv.subtract(dst, src2)
 result = not numpy.any(difference) #if difference is all zeros it will return False
 print("result:"+str(result))print(clickIdx)

# - - - - - - - - - - - - - - splite image into n*n tile--------------

tile = numpy.zeros((offset_h-1, offset_w-1, c),numpy.uint8)for i inrange(0, row):for j inrange(0, col):
 tile = src[i*offset_h:(i+1)*offset_h-1, j*offset_w:(j+1)*offset_w-1]
 tileList.append(tile)
 # cv.imshow("tile", tile)

# - - - - - - - - - - - - - - ramdom the tiles--------------------print(len(tileList))for i inrange(len(tileList)-1,0,-1):
 randomIdx = random.randint(0,i-1)print("swap:"+str(random.randint(0,i-1))+" "+str(i))
 tileList[i], tileList[randomIdx]= tileList[randomIdx], tileList[i]

# debug show every tile
# for k,tile inenumerate(tileList):
# cv.imshow("tile"+str(k), tile)

dst = numpy.zeros((h, w, c), numpy.uint8)for i inrange(0, row):for j inrange(0, col):
 dst[i*offset_h:(i+1)*offset_h-1, j*offset_w:(j+1)*offset_w-1]= tileList[i*row+j]
cv.namedWindow("dst")
cv.setMouseCallback("dst", onMouse)
cv.imshow("dst", dst)

# - - - - - - - - - - - - - match the origin image and now--------------
src2 = src.copy()for i inrange(1, row):
 src2[i*offset_h-1:i*offset_h]= numpy.zeros((1,w,3), numpy.uint8)for j inrange(1, col):
 src2[0:h,j*offset_w-1:j*offset_w]= numpy.zeros((h,1,3), numpy.uint8)
# cv.imshow("src2", src2)

cv.waitKey(0)

reference

90 The classic "mobile game" of the era-puzzle board game Opencv implementation

The above is the whole content of this article, I hope it will be helpful to everyone's study.
