Jenkins installation and deployment tutorial under CentOS 7

I. Introduction##

1、 What is Jenkins?

Jenkins is an open source platform that supports tasks such as automated construction and deployment. Basically, it can be said that it is an indispensable tool for continuous integration (CI) and continuous release (CD).

Official website: https://jenkins.io/

2、 Environmental information of this article###

3、 Ready to work###

• Install JDK

Reference: https://ken.io/note/centos-java-setup

Deploy jdk1.8.0_181 in the directory /usr/java/
After deployment, the root directory of jdk is: /usr/java/jdk1.8.0_181/

• Install Nginx (non-essential step)

Reference: https://ken.io/note/centos-quickstart-nginx-setup

Nginx is deployed to facilitate our access to Jenkins through the domain name. If there is no such requirement, you can ignore this operation

Two, Jenkins installation##

1、 Yum installation###

• yum source import

# Add Yum source
sudo wget -O /etc/yum.repos.d/jenkins.repo https://pkg.jenkins.io/redhat-stable/jenkins.repo

# Import key
sudo rpm --import https://pkg.jenkins.io/redhat-stable/jenkins.io.key

• installation

sudo yum install -y jenkins

2、 Open port###

The default listening port of the Jenkins site is 8080

sudo firewall-cmd --add-port=8080/tcp --permanent
sudo firewall-cmd --reload

3、 Configure Java Optional Path###

Because Jenkins default java optional path does not include the jdk path we deployed, so we need to configure it here, otherwise the Jenkins service will fail to start

# Modify the jenkins startup script
sudo vi /etc/init.d/jenkins

# Modify candidates to add java optional path:/usr/java/jdk1.8.0_181/bin/java
candidates="
/etc/alternatives/java
/usr/lib/jvm/java-1.8.0/bin/java
/usr/lib/jvm/jre-1.8.0/bin/java
/usr/lib/jvm/java-1.7.0/bin/java
/usr/lib/jvm/jre-1.7.0/bin/java
/usr/bin/java
/usr/java/jdk1.8.0_181/bin/java
"

4、 Start Jenkins and set Jenkins to boot

# Reload the service (because the Jenkins startup script was modified earlier)
sudo systemctl daemon-reload

# Start the Jenkins service
sudo systemctl start jenkins

# Set the Jenkins service to start on boot
# Since Jenkins is not a Native Service, you need to use the chkconfig command instead of the systemctl command
sudo /sbin/chkconfig jenkins on

Browser enter http://<ip address> :8080 Visit Jenkins

Three, Nginx configuration (non-essential steps)

1、 Configure Nginx reverse proxy Jenkins

• New configuration file

# New Nginx configuration file for Jenkins
sudo vi /etc/nginx/conf.d/jenkins.conf

# Enter the following and save
server {
 listen       80;        #Listen on port 80
 server_name  jenkins.ken.io; #Listening domain
 access_log  /var/log/nginx/jenkins.access.log main;
 error_log  /var/log/nginx/jenkins.error.log error;

 location /{            #Forward or process
  proxy_pass http://127.0.0.1:8080;}
 error_page   500502503504/50x.html;#Error page
 location =/50x.html {
  root   /usr/share/nginx/html;}}

• Reload Nginx configuration

sudo nginx -s reload

2、 Configure SELinux

If you do not configure SELinux and access through Nginx reverse proxy, the following errors may occur

# View error message
/var/log/nginx/jenkins.error.log

# Examples of error messages
connect() to 127.0.0.1:8001failed(13: Permission denied)while connecting to upstream, client:127.0.0.1

• Method 1: setsebool -P httpd_can_network_connect 1

• Method 2:

# Turn off SELinux:
sed -i '/SELINUX/s/enforcing/disabled/'/etc/selinux/config
# Restart:
reboot

Modify the local hosts, point the domain name jenkins.ken.io to the CentOS IP, and pass the domain name test access

Four, Jenkins initialization##

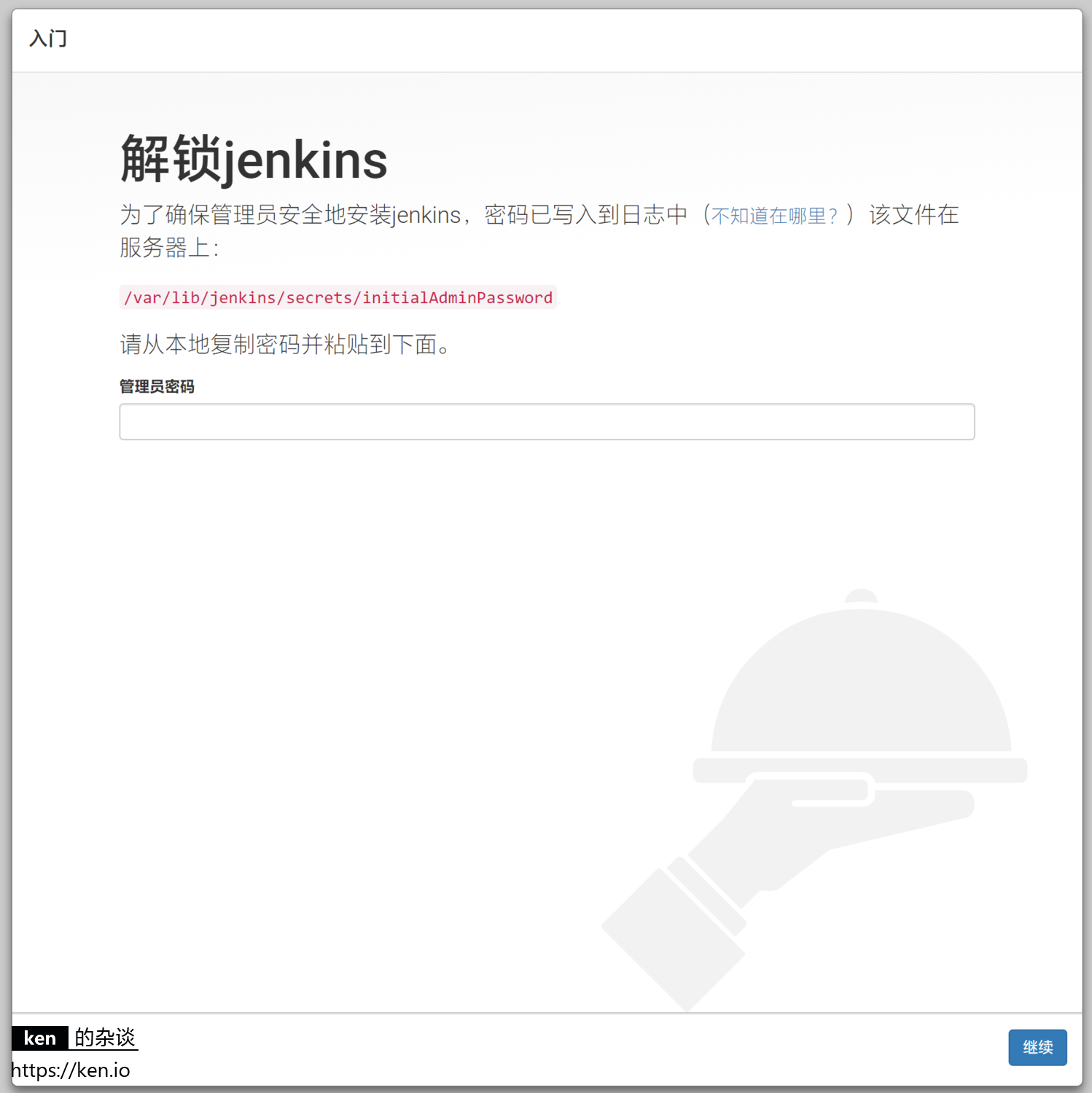

1、 Unlock Jenkins

Query the default password of the root account

cat /var/lib/jenkins/secrets/initialAdminPassword

Enter password and unlock

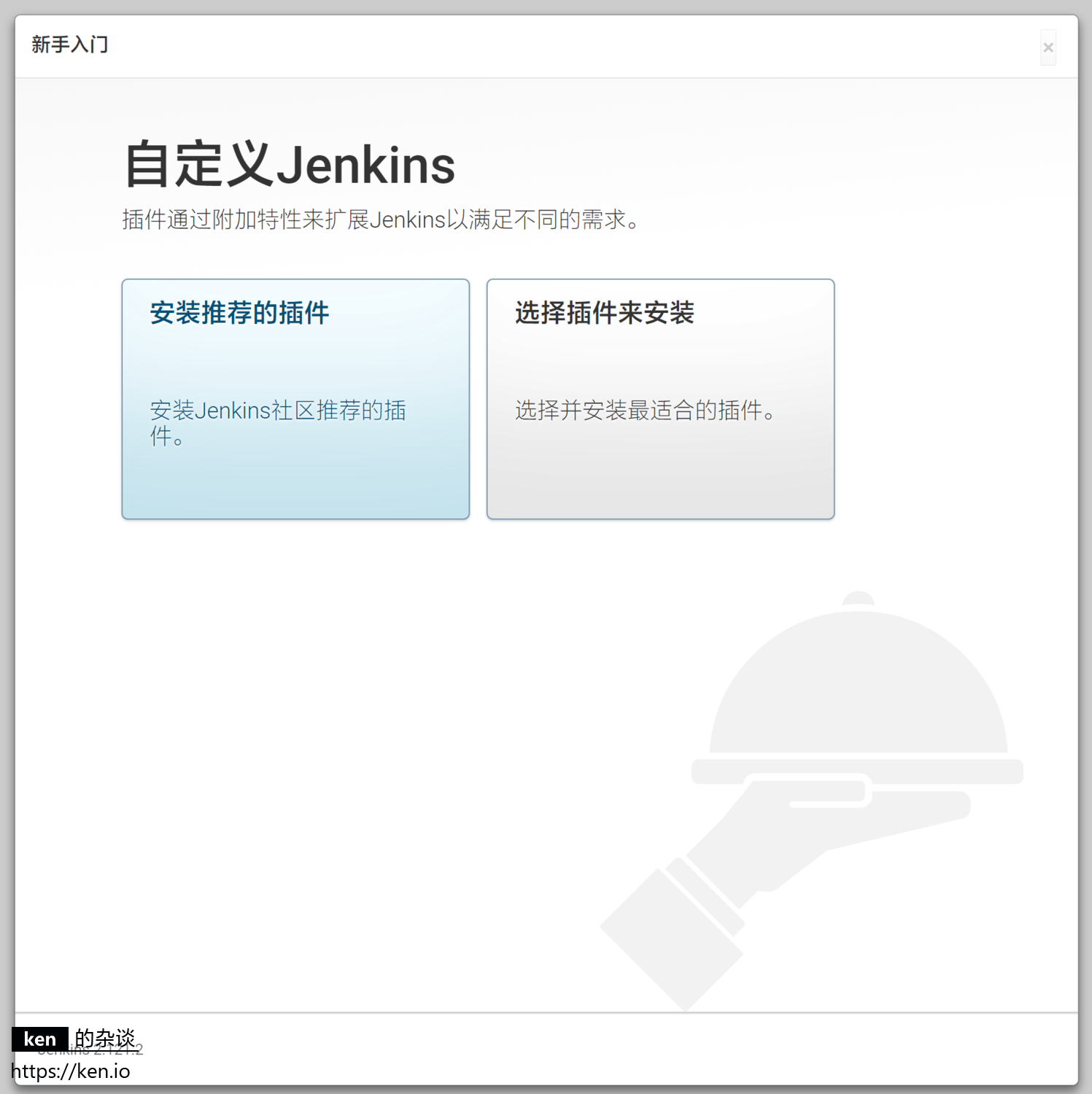

2、 Choose plugin###

Just select "Install recommended plug-ins" here

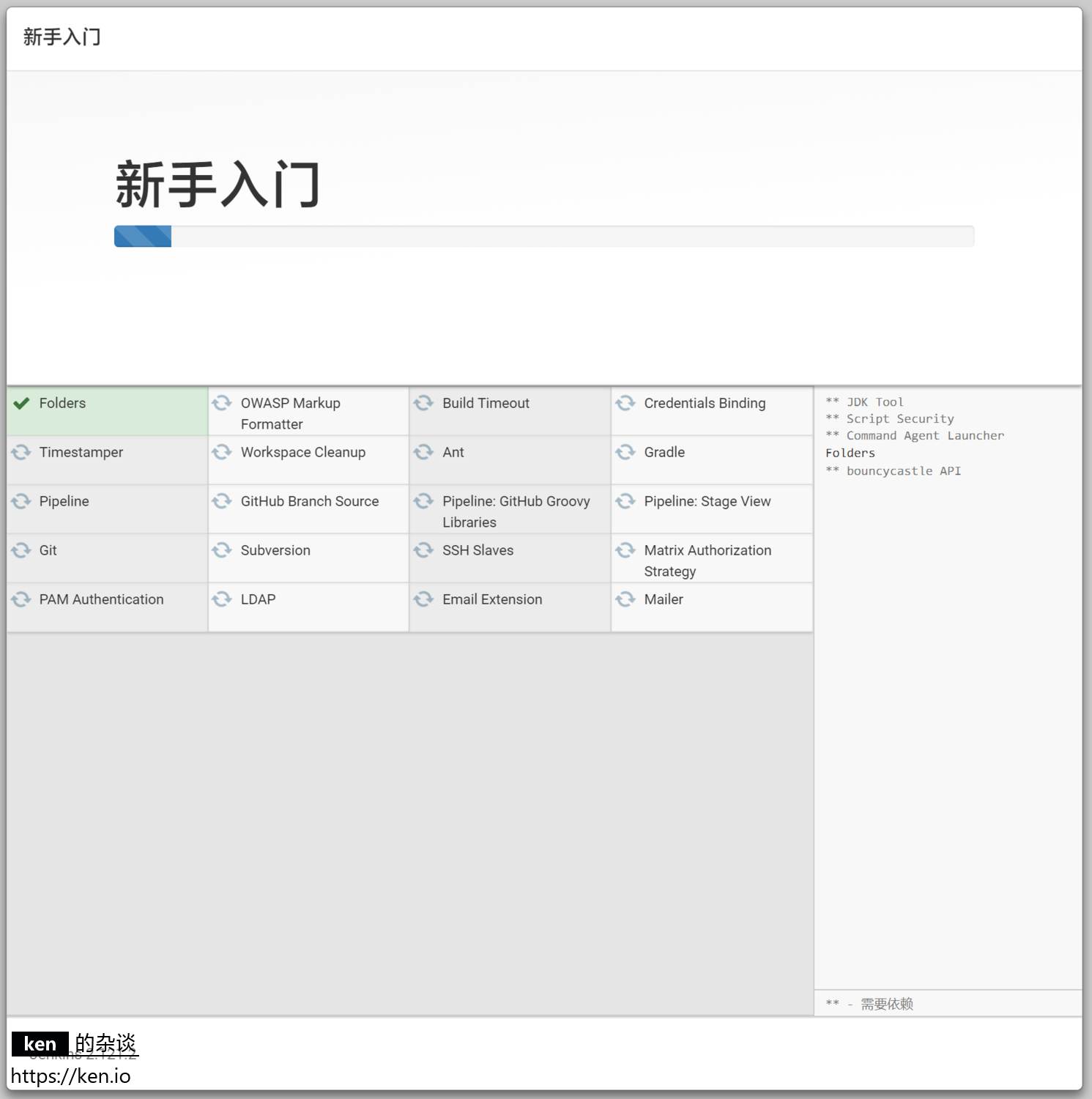

After selecting the installed plug-in, you will enter the plug-in installation interface

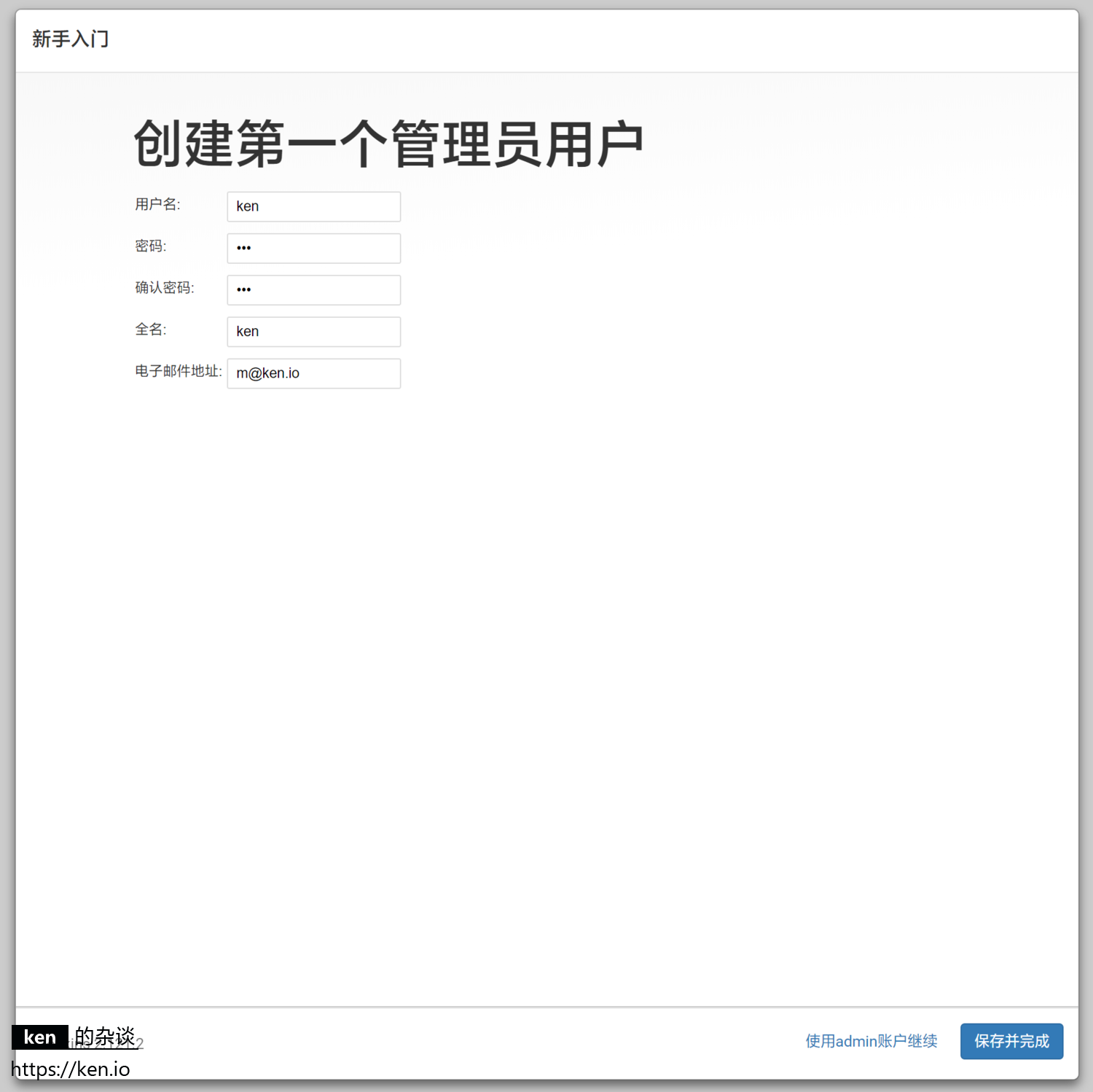

3、 Add administrator###

After the plug-in is installed, it will automatically enter the add administrator interface

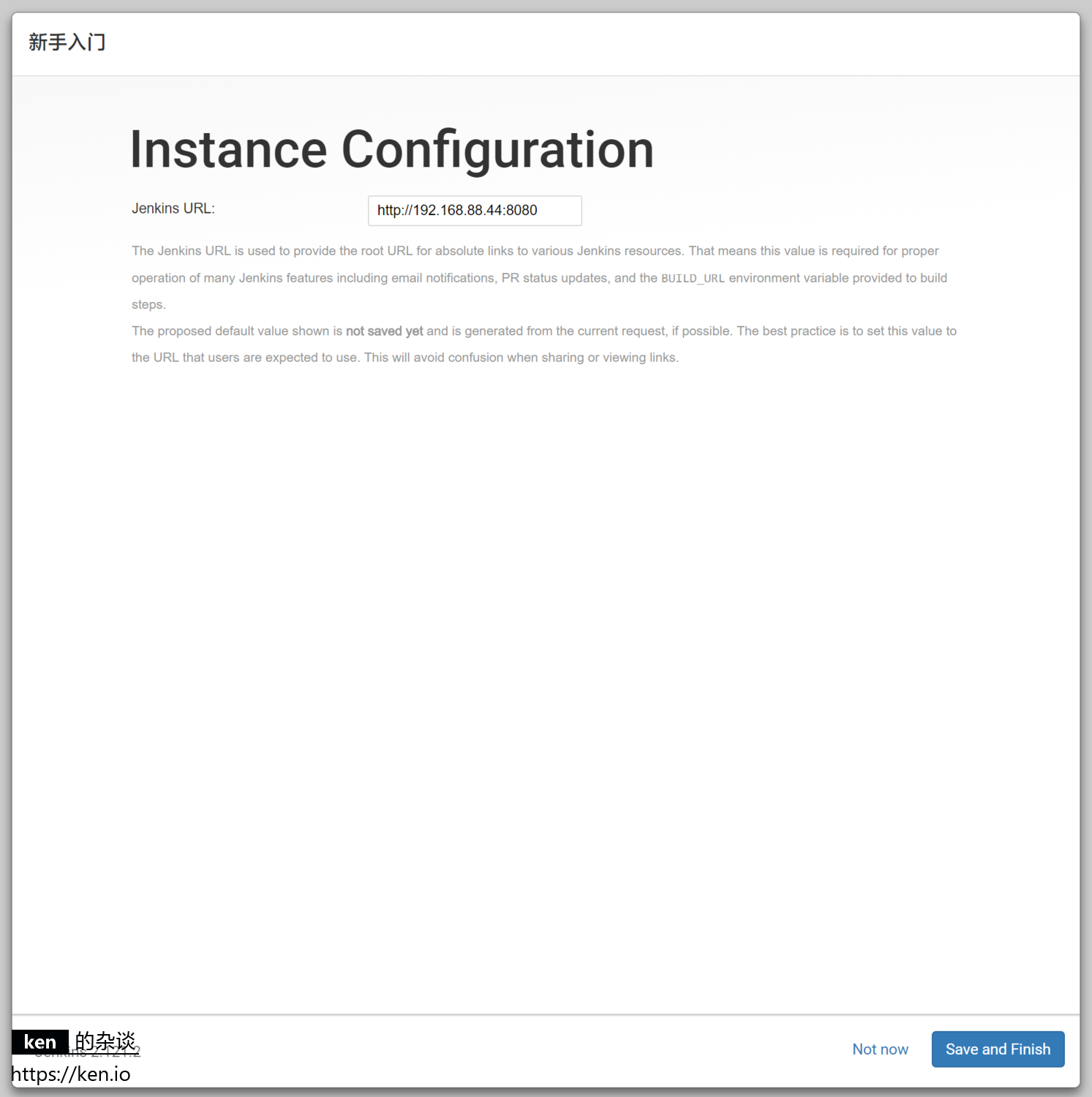

4、 Configure Jenkins URL

The URL here refers to the address where Jenkins is accessed by default.
The default is http://:8080. If you have configured the domain name through Nginx, just fill in the configured domain name.

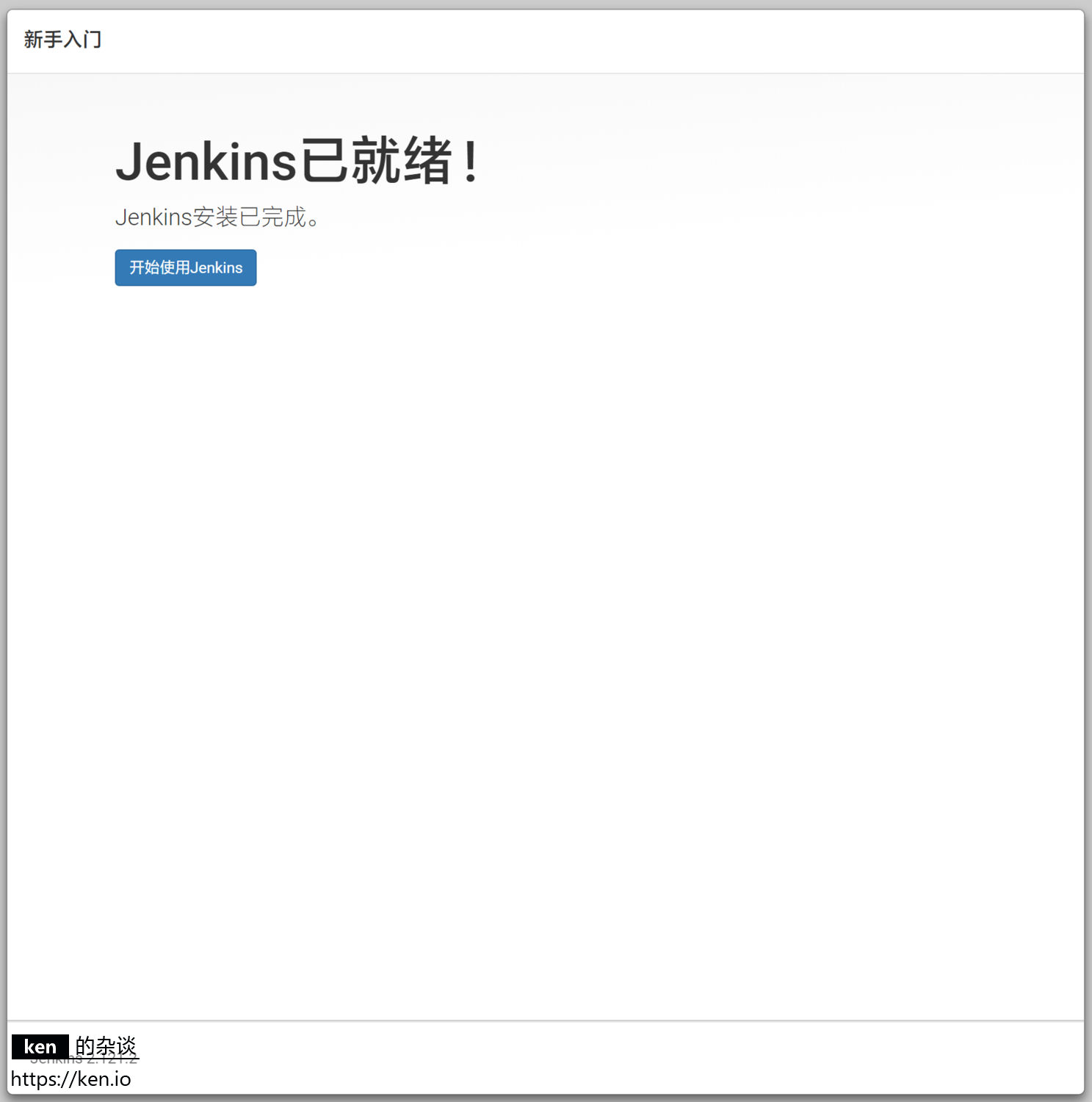

5、 Start using Jenkins

After configuring the Jenkins URL, the entire Jenkins configuration guide is completed

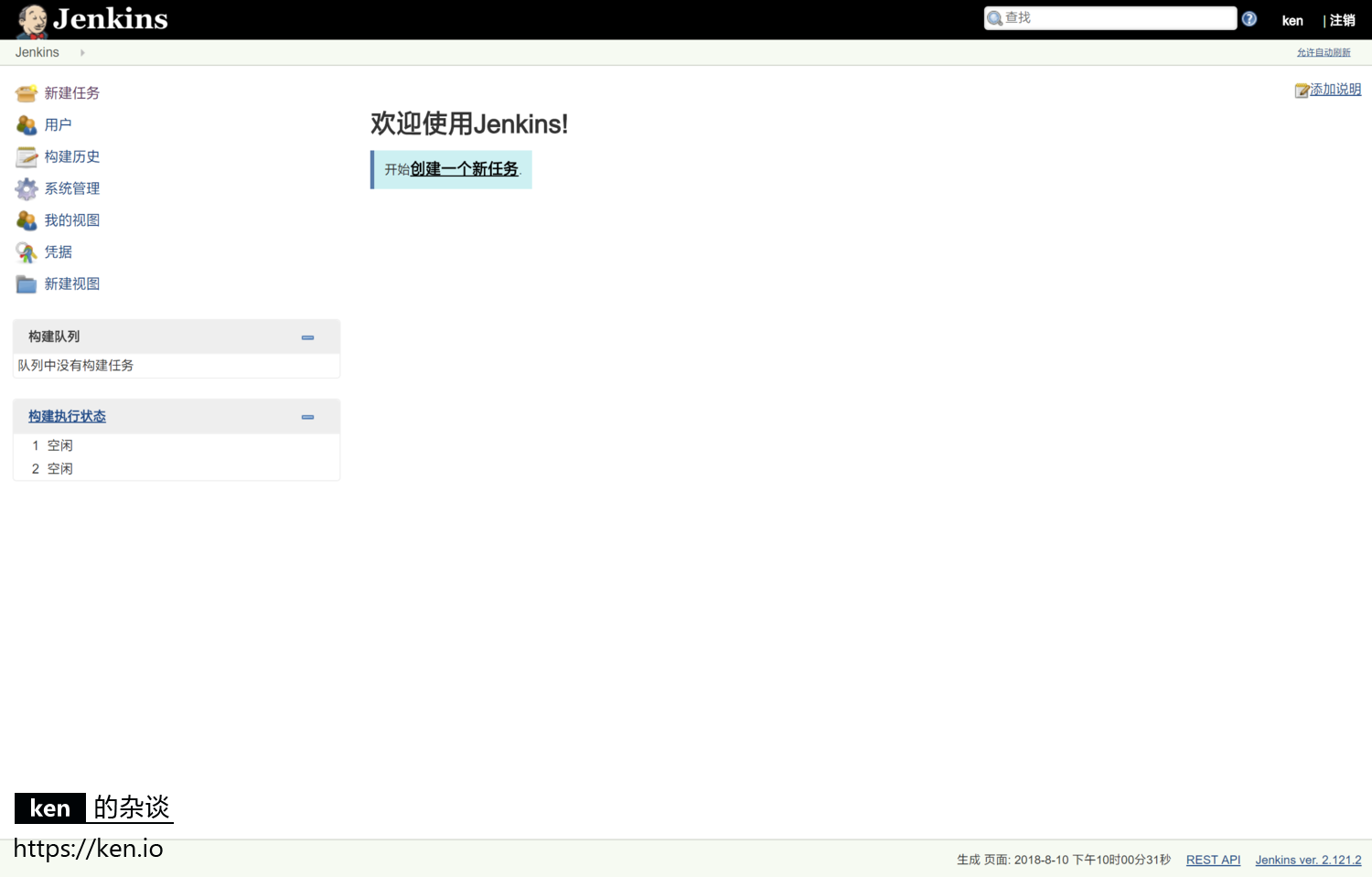

Click "Start using Jenkins" to enter the Jenkins homepage

Finished~

Five, remarks##

• This article references

https://wiki.jenkins.io/display/JENKINS/Installing+Jenkins+on+Red+Hat+distributions

https://stackoverflow.com/questions/23948527/13-permission-denied-while-connecting-to-upstreamnginx?rq=1
